pvc red insulated automotive nickel coated copper bus bar for battery

FOB Reference Price:Get Latest Price
  • >=10 Pieces
    $1.00
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 4 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)
Samples - $5.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
RHI
Model Number:
bus bar
Application:
Construction
Shape:
Round
Length:
240mm
Grade:
Copper
Cu (Min):
99.9%
Alloy Or Not:
Non-alloy
Item:
copper bus bar
Size:
as your request
Hole type:
Round,oval or others
Busbar shape:
Flat,bended,or as you like
Hardness:
solid
Working voltage:
1 KV
Working current:
200Amp
Tensile strength:
200N/ cm 2
Operating temperature:
-25℃-105℃
Appliaction:
battery pack & new energy vehicle
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day copper bus bar
Packaging & Delivery
Packaging Details
copper bus bar
First in poly bag,then in carton.Or as your request.
Port
NIngbo or Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 4 To be negotiated
Product Details

pvc red insulated automotive nickel coated copper bus bar for battery

RHI is an industry leader in fabricated copper bus bars and aluminum bus bar systems including a complete line of high current secondary AC and DC custom aluminum bus bars used for new energy systems and battery pack applications.
We provide precision milled assemblies to high volume punched and stamped components. Our advanced CNC, CAM and Solid Works technologies enable us to maintain tight control over quality to fit our customers' exact specifications or to OEM specifications.
All copper bus bar manufacturing activities meet ISO 9001 and TS/IATF16949 standards.
1) Tin-plated copper bus bar is made of copper material, which is 99.9% copper contented. It makes the products excellect conductivity with less impurities. Aluminum material is also available.
• copper content: 99.9% • Conductivity: > 100 IACS
2) The surface of custom copper bus bar can be bare or plated with tin to protect copper busbar from oxidation or creating aerugo. Other plating like nickle or silver is also acceptable as customer requirments. Clean and free-from- burr holes make sure good contact of bolts and busbar.
• Plating Options: √ Tin plating √ Nickle plating √ Sliver plating
• Insulation Options: √ Heat shrink tube √ PVC dipping coat √ expoy powder
3) Custom copper bus bar is cut with electrical wiring cut from whole copper plate or cut from available copper bars if the width and thickness is normal.
• End Shape: √ Semicircle √ Round Corner √ Square Corner
• Insulation Option: √ PE Heat Shrink Tube √ PVC Dipping √ Epoxy Powder
Feature
Resistance: 0.00001Ω
Conductivity: 57%
Tension strength: ≥500N
Insulation flame retardant: UL94V-0.
Insulation temperature resistance: -45℃ to 150℃
Resistance to corrosion:It can pass 240H salt spray test in neutral environment.
Temperature rise: Depends on cross section area. RHI can provide temperature rise reports for all products.
Bending Testing: Bend 10000 times in 15 radian angle without breakage or fracture.

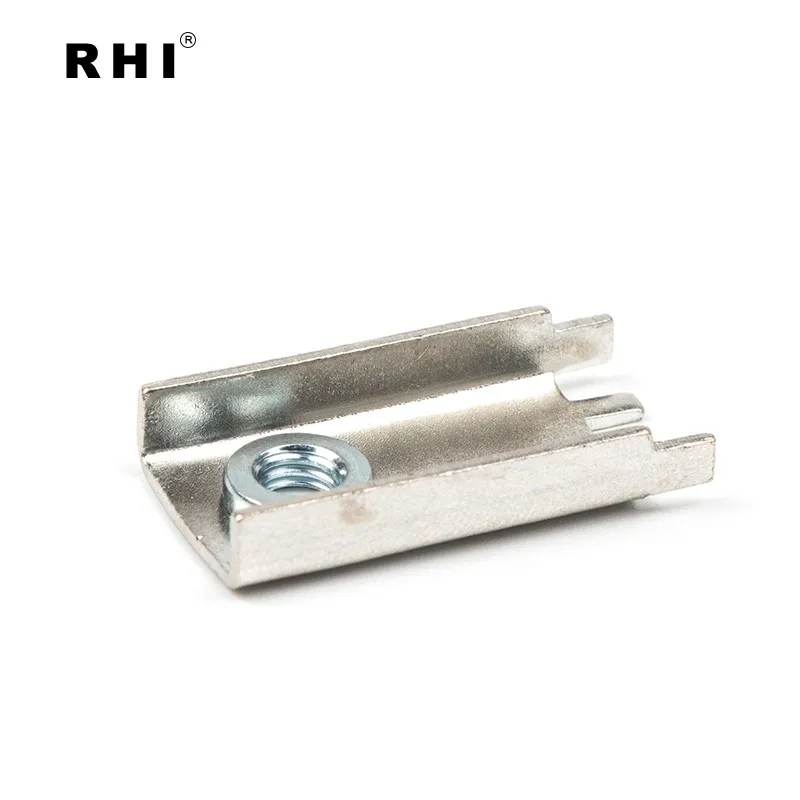

Product Show
Product Application
Busbar Tester
Why Choose Us

About us

1, Standard workshop & comfortable office

Equipment & technology

2, Professional team & First-class equipments

Service

3, HIgh quality products & good sales & after sales

Customer Feedback
Main Products

             Copper foil busbar



            Pvc dipping busbar


                   Flexible busbar


      Solid busbar with cover


      Bended copper busbar


                  Customized busbar


Certifications
